Description

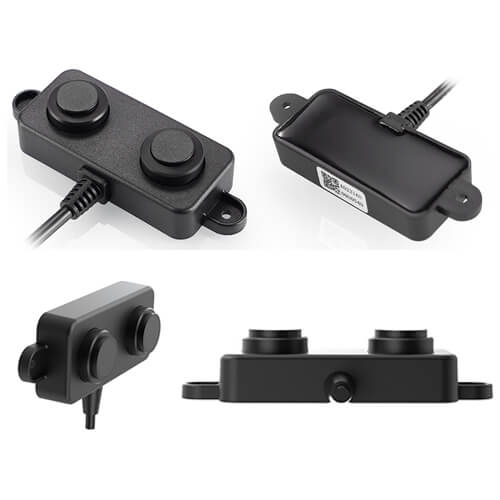

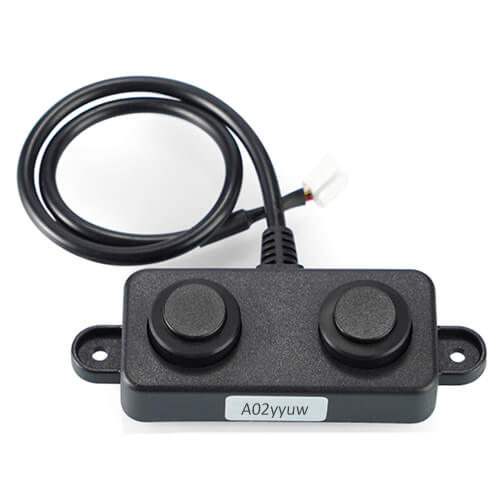

This ultrasonic distance measuring module is A02yyuw sensor. It includes transmitter and receiver. The range detector uses waterproof design. And protection class is IP67. Moreover, it has small detection blind spot. That is only 3cm. This sensor has measurement distance 450cm.
In addition, the A02yyuw ultrasonic sensor has many applications. We can use it for robot proximity obstacle avoidance. At the same time, it can help the robot avoid falling. It can also be used for waste overfill detection. Of course, you can use A02yyuw module with arduino.

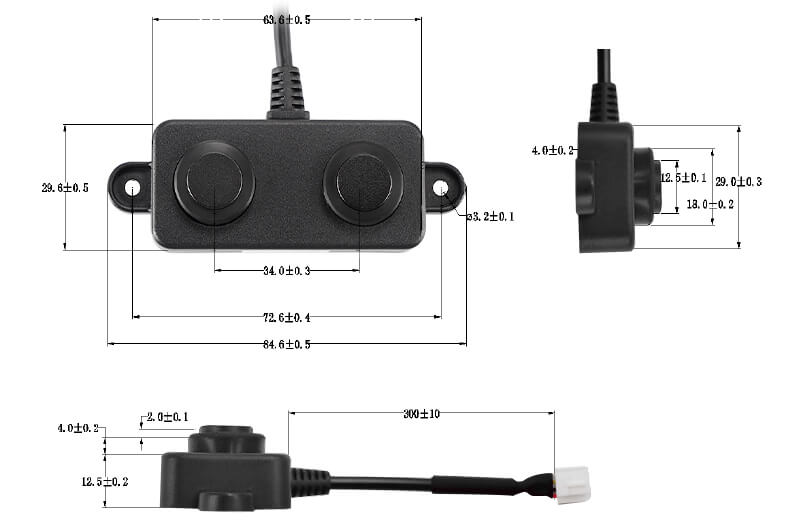

Unit: mm
Product specification of our A02yyuw ranging module:
| Output Type | PWM | UART Controlled | UART Automatic | Switching Output | RS485 |
| Sensor Working Voltage | 3.3~5 V | 3.3~5 V | 3.3~5 V | 3.3~5 V | 5~24 V |
| Module Stand-by Current | ≤5 UA | ≤5 UA | — | — | — |
| Average Operation Voltage | ≤ 8mA | ≤ 8mA | ≤ 8mA | ≤ 8mA | ≤ 15mA |
| Peak Current | ≤ 40mA | ≤ 40mA | ≤ 40mA | ≤ 40mA | ≤ 75mA |
| A02yyuw Sensor Blind Zone | 0~3 cm | ||||
| Meausing Distance for Flat Object | 3~450 cm | ||||
| Working Cycle | Controlled | Controlled | 100 ms | 100 ms | Controlled |
| Detection Accuracy at Room Temp. | ±(1+S*0.5%) cm | ±(1+S*0.3%) cm | |||
| Sensor Protection Level | IP67 | ||||
| Beam Angle | about 60° | ||||

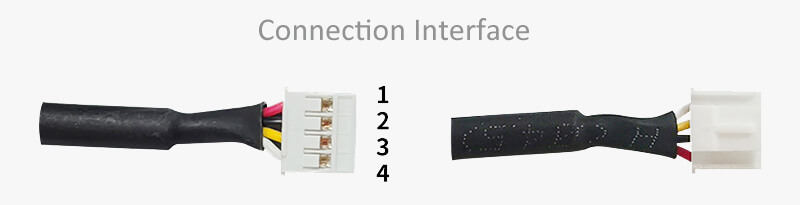

| Wire No. | Wire Name | A02yyuw Sensor Wire Description | Remark |
| 1 | VCC | Power supply input wire | —— |
| 2 | GND | Power supply grounding line | —— |
| 3 | RX | Function line | Different output modes, different functions |
| 4 | TX | Function line | Different output modes, different functions |
Technical Features of A02yyuw Ultrasonic Distance Sensor:
① Firstly, its design is smart and compact. The length of the module is only 85mm. Besides, the sensor is IP67 class. It is not affected by dust, environment, or light. The module can also detect transparent materials such as glass and plastic.
② Secondly, the sensor is particularly suitable for short distance monitoring. It has a blind spot of only 3cm. Moreover, our module is highly accurate. In addition, various output modules are available, such as PWM, UART, RS485 and switching.
③ A02yyuw sensor is with fixing screw holes. Therefore, it can solve the user’s installation and fixing problem. So we can easily use the module for robots.
FAQ
Q1: What’s your warranty time of this a02yyuw sensor?
A1: This module warranty time is one year.
Q2: Can I use this ultrasonic ranging module underwater?
A2: No. Its protection class is IP67. If you want to need the ultrasonic underwater sensor, it must be at least IP68.
Q3: If I buy the sensor in bulk, can I get the wholesale a02yyuw price?
A3: Yes. Welcome to contact us via email or whatsapp for the wholesale price.
