Description

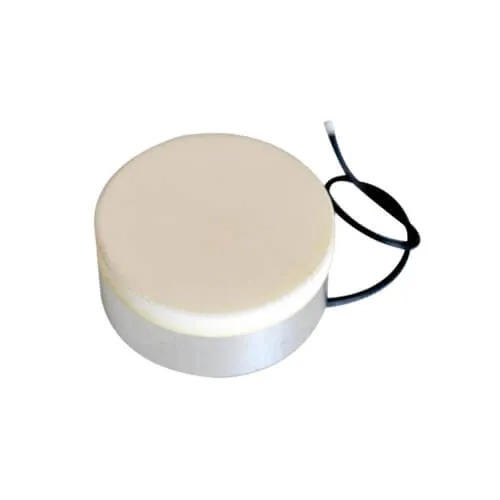

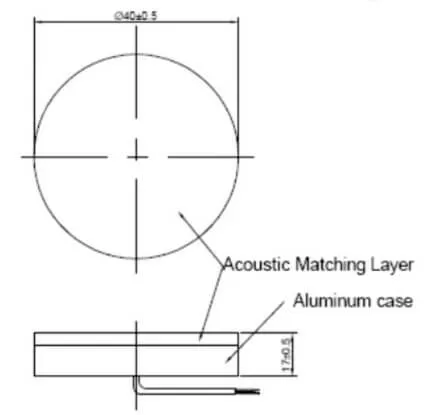

This 100 khz ultrasonic transducer uses aluminum housing. Its diameter is 40mm, and height is 17mm. The type is transceiver. That is, the transmitter and receiver is one-piece. Max ranging distance is up to 3 meters. And blind spot range is 20cm. In addition, the beam angle is small ~ about 12°. Its capacitance is about 900pF.
We can apply this 100 khz ultrasonic sensor for many occasions. For example, it can act as the probe of the industrial ultrasonic proximity switch. Thus, it helps to control various industrial production actions or counting. Additionally, you can use it for level measurement or obstacle avoiding.
Specification data of this 100 khz ultrasonic transducer:
| Transducer Type | TR (transmitter and receiver integrated) |
| Sensor Frequency | 100±8khz |
| Capacitance at 1KHz | 900pF ± 25% |
| Receiving Sensitivity | more than 1.8V |
| Transducer Beam Angle | 12° ± 2° |
| Max Input Voltage | ≤600V |
| Ranging Distance | 0.2 ~ 3 meters |
| Blind Spot Range | 0 ~ 20cm |
| Working Temperature | -40℃ to +85℃ |
| Transducer Shell Material | Aluminum |
