Description

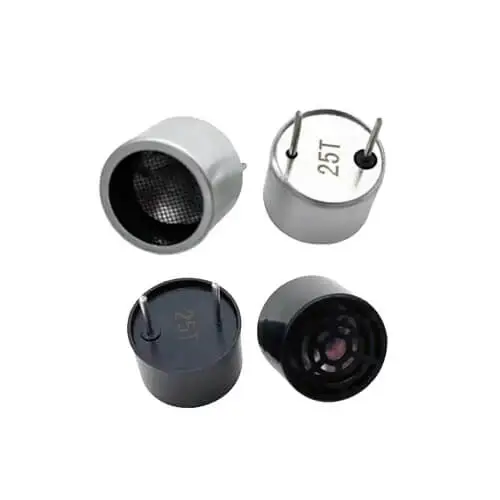

This 25khz ultrasonic transmitter sensor is open type. It is just the ultrasonic emitter, not the receiver. The diameter is 16mm and height is 12mm. Available housing material is plastic and aluminum. Application of 25khz ultrasonic transducer is as follows: anti-recording shield jamming device and dog barking control.
Features of 25khz ultrasonic transmitter
Transmitter: marked “25T” on the top of the housing;
Long detection distance and high measurement accuracy;
Light weight and high sound pressure (≥115dB).
Good consistency and durability;
Material available: black plastic, white aluminium & black aluminium housing;

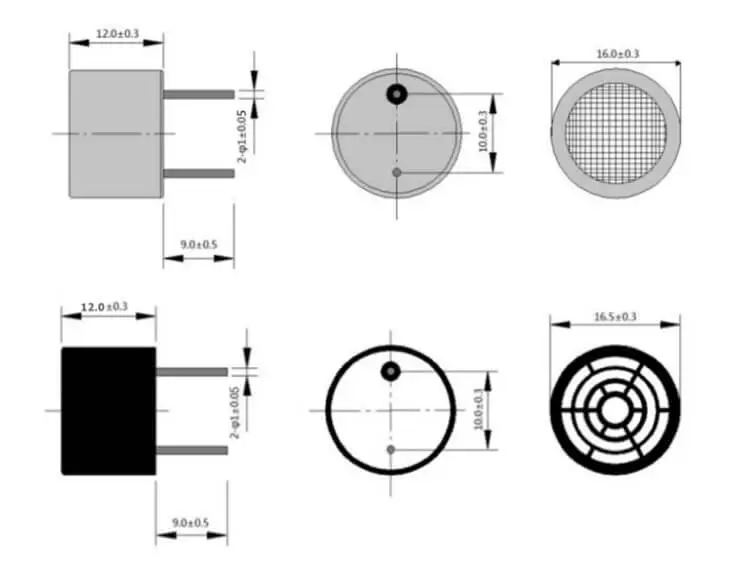

Specification Sheet of 16mm 25KHz Ultrasonic Transmitter
| Model | A-TCT-16 | P-TCT-16 |
| Sensor Type | transmitter | |
| Housing Material | aluminum | black plastic |
| Center Frequency | 25±1KHz | |
| Sound Pressure | more than 115dB | |
| Capacitance | 2600±25%pF at 1KHz | |
| Angle of Orientation | 80°±15°(-6dB) | |
| Max Input Voltage | 60Vp-p | |
| Testing Distance | 0~1300cm | |
| Working Temperature | -20~+80℃ | |
| Storage Temperature | -20~+80℃ | |
FAQ
Q1: What’s your delivery for this 25 khz ultrasonic emitter sensor?
A1: There are in stock. So we can sent the sensors out soon.
Q2: Do you have the 25khz ultrasonic transducer with black aluminum housing?
A2: Yes. Black represents anodised surface finish

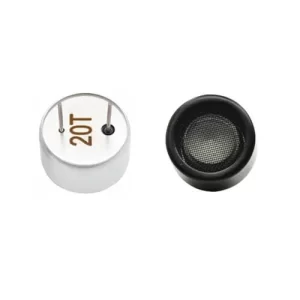

Q3: Do you have the 24mm diameter 25khz ultrasonic transmitter?
A3: Yes. We have it.
